Looking up Data

Overview 

Lists of choices and lookup values can be obtained, and used in your survey, from sources outside of the survey template. This allows you to:

Update the survey with new choices or lookup values without changing the survey template.
Share the same data between multiple surveys, for example lists of provinces and districts for a user to select.
Use much larger numbers of potential choices and lookup values than you could put directly into a survey without making it too slow to load.

Choices populate select lists; lookup values fill "calculate" questions using pulldata().

Sources 

Data can be sourced from:

CSV or XLSX file
Surveys
SharePoint lists

Use CSV/XLSX files when the data does not change too often as it is a manual process to upload an updated file onto the server. Data sourced from other surveys will be available automatically as soon as the data is submitted to the source survey. SharePoint lists are kept in sync with a SharePoint server and made available to every survey in the organisation; see SharePoint Lists as Shared Resources for how to set one up.

In the remainder of this document the source of the data will be written as SOURCE. Replace this with the name of the CSV/XLSX file or the identifier of the survey that contains your data.

Offline and Online Lookups 

You can look up data locally in FieldTask or Webforms. In this case the data is downloaded to the FieldTask app or inserted into the WebForm and it is available when you are both offline and online.

Alternatively you can look up data over the network, this will only work when you are online. The online approach becomes preferred when you have large datasets and your users are almost always connected to the Internet. Often the choice of which approach to use is based on performance considerations, this article, Performance Issues when looking up data, covers this in more detail.

Using CSV Files 

Creating the file 

The first row of the reference file contains the header. Use the same rules for specifying column headers as are used for question names, that is English characters and underscores with no spaces.

Subsequent rows contain the data. These can contain any characters supported by your phones using Unicode.

Warning

The name of the reference file should not have any spaces.

Loading a reference file onto the server 

If your reference file might be used by more than one survey then you should load it onto the server as a shared resource.

Select the Admin module
Select Shared Resources
Click Add File and select the reference files you want to load
Click Upload

Your reference file is now available to any survey that refers to it.

If you want your reference file to be only used by a single survey then:

Select the Admin module
Select Forms
Click the form name to edit it
Select File and then Media
Click Add File and select the reference files you want to load
Click Upload

Referring to the file from the survey 

Replace SOURCE with the name of the file without the extension. In the following examples the full file name is "locations.csv":

search('locations')
search('locations', 'matches', 'region_v', ${region})

Using another Survey as the Source 

Replace SOURCE with "linked_" followed by the ident of the survey. In the following examples the survey ident is s3_23:

search('linked_s3_23')
search('linked_self')
search('linked_s3_23', 'matches', 'region_v', ${region})

Use linked_self to look up data previously submitted in the same survey.

The online editor will guide you through accessing another survey's data. For example to look up choices in another survey select Appearance, click Edit, and then select the Search tab. On that tab you choose the source — the choices worksheet, a CSV reference file, a survey, or a SharePoint list — and the editor lists the available surveys, files and lists so you do not need to know their ident or name.

If you are editing your survey in a spreadsheet then you can find the ident of the survey that you are looking up by using the online editor. Open the survey you want to reference and then select File and then Info.

Warning

The survey that is referenced will need to be in the same organisation as the survey doing the referencing.

Using a SharePoint List as the Source 

A SharePoint list can be used as a source once it has been published as a shared resource. Refer to it as sharepointlist_ followed by the Smap name given to the list. For example:

search('sharepointlist_products', 'matches', 'Category', ${selected_category})
pulldata('sharepointlist_incidents', 'Reporter', 'IncidentId', ${incident_id})

The online editor lists the available SharePoint lists for you, in the same way it lists surveys and reference files, so you do not need to know the name in advance.

For details of how to connect a SharePoint server and publish a list as a shared resource see SharePoint Lists as Shared Resources.

Looking up Choices 

The approach is similar to using choices from the choices sheet but with the difference that the choices list contains the names of the columns that have the choices rather than the choices themselves. You will also need to add a search() function to the question's appearance telling it where to get the data.

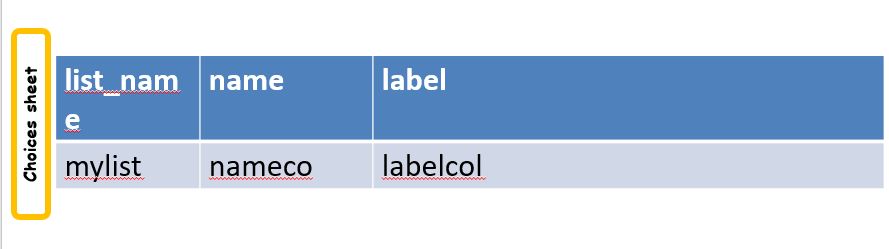

Specifying Column Names 

In the name column of the choices list specify the column name that contains the value of the choice.
In the label column(s) of the choices list specify the column name that contains the label for the choice.

Notes:

In the label you can specify multiple column names separated by commas. The data from each of these columns will then be combined and shown to the user
The value column and the label column can be the same
The choice labels can be in multiple languages as you can specify a different column for each language just as you would normally specify different text for each language

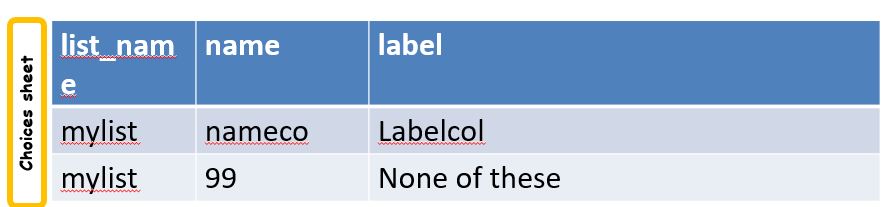

Adding fixed choices 

You can add fixed choices to the choices that are sourced from the reference file or survey. For example you may have a select question to look up geographic locations from a survey. These locations may be where your team is working and be maintained in a separate survey. That survey is presumably not going to have a value for a location of "none of these". Hence you can add that directly as a fixed choice. The value must be numeric to distinguish this choice from the choices that come from the reference file.

The Search Function 

The search function is placed in the appearance of the select question and tells the system where the source of data can be found. This function has 1, 4 or 6 parameters depending on how complex your filtering requirements are.

search() returns rows used to build the choice list.

Simple (1 parameter)

search('SOURCE')

Looks in SOURCE for the data.

This simple form is supported on every platform. The filtered forms described below also work in WebForms, subject to the version notes shown against each filter function.

Note

Duplicates will be removed.

Filter the data (4 parameters)

search('SOURCE', 'A FILTER FUNCTION', 'COLUMN IN SOURCE TO FILTER ON', FILTER VALUE)

The filter function can be one of:

contains (For use in WebForms requires SmapServer 21.08)
startswith (For use in WebForms requires SmapServer 21.08)
endswith (For use in WebForms requires SmapServer 21.08)
matches
in
not in
eval (Requires FieldTask 6.505 and SmapServer 21.09)

Filter function names are not case sensitive, so startswith and startsWith are equivalent.

The filter values for "in" and "not in" should be lists separated by spaces. Use it with filter values that come from select multiple questions.

In the online editor you select the filter function from the match dropdown on the Search tab. The eval function is the exception: tick the Use a filter expression checkbox instead, then enter the expression (see Get a value using an expression (3 parameters)).

Warning

Using column names in the reference file of "name" or "label" to filter on will cause problems in WebForms if these are not also the columns that are used for the value and label of the choice. In other words if you are going to call a CSV column "label" then make sure it does contain the label!

Double filter the data (6 parameters)

Like the normal filter but with an extra "matches".

search('SOURCE', 'A FILTER FUNCTION', 'COLUMN IN SOURCE TO FILTER ON', FILTER VALUE, 'COLUMN TO MATCH ON', VALUE TO MATCH)

Example:

search('children', 'matches', 'class_v', 'class1', 'enrolled_v', 'yes')

Returns all records in the children reference file where the "class_v" column has the value "class1" and the "enrolled_v" column has the value "yes".

Examples 

Search examples
Filter	Appearance	Comments
matches	search('locations', 'matches', 'region_v', ${region}	Searches locations file for all rows where the region_v column is the same is the answer to the "region" question
in	search('product', 'in', 'product_category', ${product_category})	Returns all products whose category is in the list of product categories that are selected in the "product_category" select multiple question.
eval	search('product', 'eval', "cast(#{age} as integer) > ${min_age} and cast(#{age} as integer) < ${max_age}", 'eval')	Return all people whose age is between the values selected in the min_age and max_age questions. Note #{name} refers to a column in the data that you are looking up. The 4th parameter is ignored for an eval filter so I just set it to 'eval' again in this example.
eval and matches	search('product', 'eval', "cast(#{age} as integer) > ${min_age} and cast(#{age} as integer) < ${max_age}", 'eval', 'region', ${region})	As for the eval example above but this time only return people whose ages match and are also in region the selected region. Note You can always replace this "double filter" format with a single eval such as: search('product', 'eval', "#{age} > ${min_age} and #{age} < ${max_age} and ${region} = #{region}", 'eval')

For more information on using the eval function refer to Get a value using an expression (3 parameters).

Getting Lookup Values with the Pulldata Function 

The second type of data that you can get from a source is a lookup value. This is data that is "pulled" from its source (a reference file, another survey, or a SharePoint list) and added as the answer to a calculate question. It can then be treated like any other answer, and be sent to the server, used in a relevance etc.

There are four versions of the pulldata function with 3, 4, 5 or 6 parameters.

3 params: Get a single value identified using an expression
4 params: Get a single value identified by a specific value in a single filter column
5 params: Get a result for multiple values identified using an expression
6 params: Get a result for multiple values identified by specific value in a single filter column

The Syntax:

pulldata('source', 'column to retrieve', 'filter expression')
pulldata('source', 'column to retrieve', 'filter column', 'filter value')
pulldata('source', 'column to retrieve', 'filter expression', 'index', 'eval')
pulldata('source', 'column to retrieve', 'filter column', 'filter value', 'index', 'filter type')

The most commonly used version is the one with 4 parameters. This is also the standard pulldata version that is used by other data collection tools.

Building the function in the online editor 

You can type the pulldata function directly into a calculation, or you can let the online editor build it for you.

Note

The pulldata builder is only available with Smap Server version 26.06 and later. With earlier versions, enter the function manually as described in the sections below.

Add a calculate question (or any question that has a calculation), then select the calculation and click the Look up data button. This opens a dialog that builds the function for you so you do not have to remember the parameter order. The button is available when the calculation is empty, or already contains a single pulldata() or lookup() function that you want to edit.

In the dialog you can set:

Source — a reference file, another survey, or a SharePoint list. The editor lists the available sources so you do not need to know their names.
Access — Offline and online generates a pulldata() function; Online only generates a lookup() function.
Column to retrieve — the column or question whose value you want.
Filter — either a filter column with a match type and value, or tick Use a filter expression to write an expression.
Look up repeating data — tick this to return more than one matching value. You can then choose an index (a position, or one of the aggregations sum, mean, min, max, count or list).

The editor inserts the completed function into the calculation. The sections below describe each version of the function that the builder can produce.

Get a value using a key (4 parameters)

Add a calculate question to your survey and give it a name. For the calculation specify the pulldata function:

pulldata('source', 'column to retrieve', 'filter column', 'filter value')

The source can be the name of a reference file (without its extension), the identifier for another survey, or a SharePoint list.
The column to retrieve is the name of the column in the reference file whose data you want, or the name of the question in the survey that you are looking up.
The filter column is the name of the column / question that identifies the value to retrieve. So if you are looking up the product name using the product code, then this parameter contains the name of the product code column.
The filter value is the value of the filter name that you want. So for the product example if the filter value was set to 'a10' then you would expect to get back the product name for the product with code 'a10'.

Get a value using an expression (3 parameters)

In this approach the 'filter column' and 'filter value' are replaced by an expression. This allows much more flexibility in how the 'column to retrieve' is selected:

pulldata('source', 'column to retrieve', 'filter expression')

When using an expression to filter data you can use the ${question name} syntax to refer to questions in the current survey as usual. However to refer to columns in the reference file or referenced survey use #{column name}.

You can also enclose the whole expression in double quotes. This allows you to use single quotes around text values. For example "#{city} = 'london'"

Data values may need to be "cast" to integer or decimal types. This is because all reference file data is stored as text. For example if you have a filter expression like "#{age} < ${max_age}". Here #{age} is the age value in the reference table and you will need to change your expression to "cast( #{age} as integer ) < ${max_age}". Refer to Converting to a different type for more details.

Warning

In FieldTask4, a pulldata function using an "expression" is not automatically triggered if any of the referenced questions changes their value. FieldTask5 does not have this issue. This means that when using FieldTask4 the pulldata value will not be updated when you were expecting it to be However you can force this behaviour by enclosing the pulldata function within an if() function that references the same questions. The examples below show this approach.

Examples of pulldata using expressions
pulldata	Comment
if(string-length(${product_code}) > 0, pulldata('products', 'product_name', '#{product_code} = ${product_code} '), '')	This is the same as the simple product name lookup that was described for the 4 parameter version of pulldata! Note that we use #{product_code} to refer to the value from the product_code column in the reference file. We also refer to the answer to the product code question in the survey using the normal ${} syntax. The pulldata() is enclosed inside an if() function so that FieldTask knows to trigger it when the product_code changes.
if(string-length(${product_code}) > 0, pulldata('products', 'product_name', '#{product_code} = ${product_code} and #{region} = ${region}'), '')	Now an example that can't be implemented using the simple 4 parameter version. This example assumes that product codes can be reused in different regions so to get the right product name you also want to filter by region.
if(string-length(${product_code}) > 0, pulldata('products', 'product_name', "#{product_code} = ${product_code} and #{region} = ${region} and #{year} = '2022' "), '')	An additional filter by year has been added. Note that because the year is fixed and enclosed in single quotes we have enclosed the whole expression in double quotes.

Get multiple values (5 and 6 parameters)

The previous examples just returned a single value. If more than one record matches a key just the first will be returned. However you can use repeating groups to show repeating reference data.

The pulldata functions look like this:

pulldata('source', 'column to retrieve', 'filter expression', 'index', 'eval')
pulldata('source', 'column to retrieve', 'filter column', 'filter value', 'index', 'filter type')

The first version, 5 parameters, adds an 'index' parameter. The final parameter 'eval' doesn't do anything, it is just there to differentiate this from the standard 4 parameter pulldata function.

The second version, 6 parameters, adds the 'index' parameter and a 'filter type' to the standard 4 parameter version.

Index 

The index starts at 1 and allows you to specify which of the multiple matching values you want. So if the index is 3 you will get the answer in the third matching record.

Instead of a number you can use one of the following aggregation functions as the index:

sum - The sum of all the records

mean - The mean or average of the values

min - The minimum value

max - The maximum value

count - The count of the number of matching records

list - All the matching values separated by a space

A fixed index can be written with or without quotation marks; for example 3 and '3' are equivalent. The online editor writes it with quotes.

Note

If you use an expression such as position(..) as the index it must not be enclosed in quotation marks, because it has to be evaluated rather than taken as a literal value. The online editor only lets you choose a fixed number or an aggregation; to use an expression like position(..) (for example to step through a repeat) enter the function manually.

Filter Type 

This is used only with the 6 parameter version and specifies how to filter records. It works in the same way as the filter function in search. In the standard pulldata version this is not needed because the filter type has to be matches since only one record should be found.

contains

startswith

endswith

matches

in

not in

Example usage 

Reviewing Multiple Complaints - 6 parameter version
type	name	repeat_count	calculation	comment
calculate	number_recs		pulldata('linked_s11_2134', 'complaint_type', 'office', ${office}, 'count', 'matches')	returns the number of records for the selected office. The second parameter is ignored when using an aggregate function for the index.
begin_repeat	rpt	int( ${number_recs} )		Creates a repeat group for each matching complaint. Note that the repeat count has to be cast to an integer as calculates have text value by default
note	type		pulldata('linked_s11_2134', 'complaint_type', 'office', ${office}, position(..), 'matches')	The pulldata function is almost the same as before except this time we are getting the value for the record number that corresponds to the position in the repeat.
note	complaint		pulldata('linked_s11_2134', 'complaint', 'office', ${office}, position(..), 'matches')	This time we get the details of the complaint as the value of the note
end_repeat	rpt

Support in FieldTask and SmapServer 

Support for looking up data in reference files and other surveys
pulldata version	FieldTask offline	FieldTask online	WebForms offline	WebForms online
3 params	v6.503	v6.503	v20.09	v20.09
4 params	v6.503	yes	yes	yes
5 params	v6.503	v6.503	v20.09	v20.09
6 params	v6.503	v6.503	v20.09	v20.09

More Pulldata Examples 

You may want to look up the maximum age for a program in a particular region. This example uses the 4 parameter version. In this example we ask what training sector the interviewee is interested in. Then we ask their age. We then do a lookup in the reference file "ref_data.csv" for the maximum allowed age for that sector. Then if the person qualifies we ask them if they want to enroll.

Pulldata:
type	name	label	relevant	calculation

select_one sectors	sector	Which sector?
integer	age	What is your age?
calculate	max_age			pulldata('ref_data', 'max_age', 'sector', ${sector})
select_one yes_no	enroll	Do you want to enroll?	${age} <= ${max_age}

Other examples:

Pull data examples
Params	Calculation	Comments
3	pulldata('cities', 'city_label', "#{country} = 'us' and #{city_label} = 'austin'")	The csv file 'cities.csv' has a column city_label. The calculation returns the value in the column 'city_label' of the csv file 'cities.csv' where the value in column 'country' is 'us' and in column 'city' is 'austin'
3	if(concat(${country}, ${city_code}) = '', '', pulldata('cities', 'city_label', "#{country} = ${country} and #{city} = ${city_code}"))	As for the previous example however the search values for country and city_code are the answers to questions. Here the pulldata function has been put inside an if() function that refers to these filter questions. This will make it recalculate when those filter questions change their answer.

Online Lookup and Search 

If you have a network connection when filling in the form then you can replace "pulldata" with "lookup". The lookup function requires an active connection and does not use local, unsent data.

lookup() supports all the same variations as pulldata(), with the same parameters, including the 5 and 6 parameter versions that return multiple values:

lookup('source', 'column to retrieve', 'filter expression')
lookup('source', 'column to retrieve', 'filter column', 'filter value')
lookup('source', 'column to retrieve', 'filter expression', 'index', 'eval')
lookup('source', 'column to retrieve', 'filter column', 'filter value', 'index', 'filter type')

In the online editor, choose Online only as the access type to build a lookup() function instead of a pulldata() function; all the other options are the same.

Similarly with search just replace "search" with "lookup_choices":

lookup_choices('source')

When you have very large amounts of source data lookup can be more practical. Refer to this article for a discussion on why this is the case.

Local Data 

Available with FieldTask version 6.400 and SmapServer version 21.05

Normally when you look up data in other surveys you are looking up data that is stored on the server and has then been copied onto your device. However you may need to complete multiple surveys in a location without an internet connection and while at that remote location you may want to reference data that was entered in another survey but has not been submitted yet.

Surveys have local data searching turned off by default as it could potentially result in significantly longer load times for a survey in cases where the device has been used offline for a significant period of time and there are hundreds of unsent results.

To turn local data searching on with the online editor select the menu File and then Settings. In the settings dialog select the checkbox labelled Lookup local, unsent data on device.

To enable local data searching using the XLSForm editor set a value of "yes" in the column "search_local_data" in the settings worksheet (Survey Settings).

Values from the local unsubmitted data will then be included in data returned from a search() or a pulldata() function. This happens transparently and no further action on your part is required.

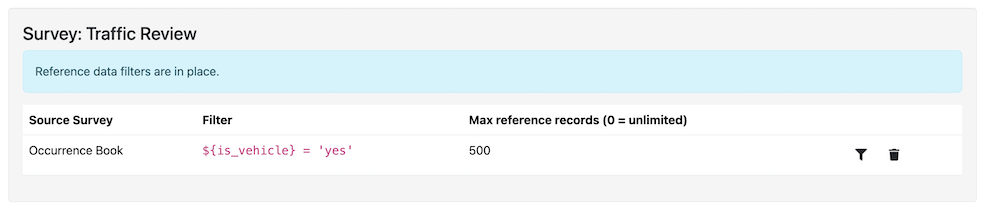

Filtering the Data from Surveys Before it is Downloaded to Devices 

The filters described so far on this help page only filter within the data that has been downloaded to the device. For example in this search function:

search('locations', 'matches', 'region_v', ${region})

However you may want to download only a subset of data for reasons of security and performance. This filtering only applies to data where the source is a survey. The available filters are:

Recently Submitted Data

Data Relevant to the Requesting Survey

Current Data (that is, data that has not been archived)

Data Submitted by the Requesting User

Access Control Rules for the Current User

Recently Submitted Data 

This filter will restrict the records included from the survey to the most recently submitted or updated up to a maximum number. This is the most direct way of reducing download size as long as you don't mind data from older records dropping out of the list.

The limit is set for each survey linked to from the survey that looks up the reference data. So in the survey that references data from other surveys you can select the menu option "File" and then "Reference Filters". A page will then be shown with a list of surveys that are linked to. For each of these you can click the filter button and set the maximum number of records.

Shows a list of surveys that are linked to and against each one, the maximum number of records to download — The Reference Filters page, where you set record limits and relevance filters for each linked survey

This filter applies to all surveys in a bundle. It is also applied after the other filters, so you can first restrict the reference data to only the relevant records and then limit those to a maximum number.

Data Relevant to the Requesting Survey 

Sometimes only some of the data in the survey that you are referencing is relevant to the purpose of your survey. You can add a filter that restricts the data referenced by your survey. This filter is set in the same place as the one for "Recently Submitted Data": on the Reference Filters page click the filter button for the linked survey and specify the condition that a record must meet to be included. In the picture for that filter you will see that data has been restricted to records where the question is_vehicle is set to yes.

Current Data 

You can archive data that is no longer relevant so that only current data is included in a lookup. Archived records are excluded automatically; no filter setting is required. See Archiving data.

Data Submitted by the Requesting User 

You can set a checkbox in the survey's settings so that when other surveys pull reference data from this survey they will only get data that the logged in user submitted. Open the survey being referenced in the online editor, select the menu File and then Settings, and tick the checkbox.

Access Control Rules for the Current User 

You can control the records a specific user can access by using row filters and roles. Role Based Access Control

Use online lookup 

Finally of course, if you can, you can use online lookups then only the data you are referencing needs to be transferred your your devices. More details: Looking up data online.
